Tractor-Mounted Sprayer

ACM SS-TM1 (MK III) Insecticide
Advanced Coefficient Mechanised Spray System

▸ Suitable for crop protection.

▸ Pest outbreak – effective control, fast coverage.

▸ Mounted on tractor which power is more than 60 HP and generating power through Power-Take-Off (PTO).

▸ Light weight, non-corrosive, durable reinforce fiber glass, and 800 litres capacity spray tank with ultra violet stabilized material. Optional spare tank is available.

▸ Epoxy resin coated structure – prevent corrosion from chemical spray solution.

▸ Fully equipped with powerful engine and high pressure pump.

▸ Equipped with jet pump and mechanically activated inlet valves to enable accurate and fast on spot water refill.

▸ Hydraulic agitation inside the tank for easy and fast chemical preparation.

▸ Zoom nozzle (optional accessory) of 60 L/ha – 1100 L/ha with two 100 metres hose enables:
i) Circle & strip spraying
ii) Blanket spray

▸ Seating compartment & toolbox is available.

JACTO Arbus 400 Golden
Tractor-Mounted Air Blast Sprayer

Specification

Model: Arbus 400 Golden
Fuel tank capacity: 400 litres
Pump Capacity: 75L/min-540 rpm
Pump: JP 75
Fan Diameter: 850 mm
Fan Rotation: 1690 rpm
Air Speed: 126 km/h
Air Volume: 858 m³/min
Nozzle: 24
Installed Nozzles: JA 5.0
Working Speed: 2 to 6 km/h
Power Consumption: 23 HP
Agitation System: Hydraulic Return

Features & Benefits:

▸ Suitable for crop protection.

▸ Mounted on tractor which power is more than 60HP and generate power through Power-Take-Off (PTO).

▸ The 400-L Polyethylene tank is light weight, corrosion resistant and UV resistant.

▸ Pump flow rate is about 75 L/min; ceramic liner ensures greater resistance to abrasion and chemical corrosion.

▸ Suction filter is specially designed to prevent dirt or impurities from reaching the pump; possess a quick shut off valve which allows easy cleaning of filter, changing of filter parts or maintaining pump.

▸ Locking device of the fan is designed to be used during tank filling, agitation of chemicals mixture during spraying and will reduce power consumption during the said operation.

▸ Fine droplets generated from nozzles distribute uniformly over the sprayed surface; droplets size varies depends on flow rate, spray angle and working pressure; nozzles made of ceramic is very resistant to wear & tear and corrosive chemical.

▸ Nozzle holder with valve is adjustable to desired angle and can be shut off separately.

JACTO 400
Tractor-Mounted Cannon Sprayer

Specification

Net Weight: 295 kg
Tank Capacity: 400 litres
Dimension: 1.65 m (L) x 1.5 m (W) x 2.25 m (H)
Minimum Tractor Horse Power: 60 HP
Pump Capacity: 94 L / min
Pump: Piston
Revolution: 3770
Air Volume: 2.00 m³/s
Air Speed: 290 km/hr
Spray Swath (without wind): 20 metres
Spray Volume/Minimum: 32
Spray Volume/Maximum: 465
Recommended Operating Speed: 2 to 6 km/hr
Power Consumption: 20 HP
Average Tank Filling Time: 7 minutes

Features & Benefits:

▸ Tank HDPE (High Density Polyethylene) with 400 L capacity is resistant against corrosive chemicals and UV to prolong life span.

▸ The cannon head can be adjusted up, down or pointed to any direction even during spraying. With manual adjustment, spray angle up to 360 vertically and 2380 horizontally can be achieved.

▸ 9-setting valves which are precisely calibrated for easy operation and flow rate adjustment without changing nozzle.

▸ Suction filter is manufactured with corrosion resistant material, equipped with a quick shut – off valve to facilitate cleaning operations.

▸ 3 deflector nozzles fit on the main spout, and 2 fan nozzles on the auxiliary spout located below the main outlet. Flow rate requirement can be adjusted through nozzles of both outlets located below main outlet.

▸ Equipped with efficient JACTO radial fan, they deliver air at high pressure and outstanding high speed with low power consumption, JACTO cannons produce fine droplets with extraordinary penetration and excellent into the dense foliage.

▸ Sprays up to 20 metres downwind with outstanding coverage.

JACTO AJ-401-LH PLUS
Tractor Mounted Cannon Sprayer

Specification

Weight: 230 kg
Tank Capacity: 400 litres
Pump Capacity: 120 L/min
Filter: Min : 15 L/ha
Max : 2200 L/ha
Rotation: Air Speed 232 km/h
Working Speed: From 2 to 6 km/h

Features & Benefits:

▸ Chemical tank made of HDPE (High Density Polyethylene) resists well impacts and sun rays, has an easy-to-read level indicator.

▸ Control valve located nearby tractor driver enables ease of application rate adjustment.

▸ Pump is powerful and easy to access for maintenance.

▸ Filling valve can easily fill-up tank within 5 minutes only, without calibration.

▸ Filter protects nozzles from impurities and abrasive particles of chemicals.

▸ Excellent spray coverage with distance up to 20 metres, if spray downwind.

▸ Has a cover at the cannon opening to protect the nozzle during transport.

▸ Its auxiliary rotary atomizer ensures ideal spray swath.

▸ Allows low and ultra low volume applications.

▸ It is easy to operate and to adjust vertically and horizontally.

▸ Modern, low cost and little maintenance.

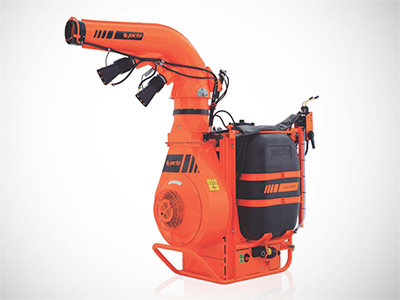

JACTO 600 EXPORT
Tractor Mounted Cannon Sprayer

Specification

Dimension: 3.20m (L) x 1.25m (W) x 2.20m (H)
Net Weight: 340 kg
Minimum Tractor Horse Power: 60 HP
Tank Capacity: 600 litres
Pump Capacity: 130 L / min
Revolution: 4,100
Air Volume: 156 m³/min
Air Speed: 270 km/h
Spray Swath (without wind): 20 metres
Spray Volume/Minimum: 20 L/ha
Spray Volume/Maximum: 430 L/ha
Recommended Operating Speed: 2 to 6 km/h
Power Consumption: 26.5 HP
Average Tank Filling Time: 7 minutes

Features & Benefits:

▸ Tank HDPE (High Density Polyethylene) with 600 L capacity is resistant against corrosive chemicals and UV to prolong life span.

▸ The cannon head can be adjusted up, down or pointed to any direction even during spraying. With full hydraulic system, spray angle up to 36° vertically and 238° horizontally can be achieved.

▸ Adjustment of cannon head can use independent hydraulic system, without using hydraulic system of tractor.

▸ 9-setting valve which is precisely calibrated for easy operation and flow rate adjustment without changing of nozzle.

▸ Suction filter is manufactured with corrosion resistant material, equipped with a quick shut – off valve to facilitate cleaning operations.

▸ 3 deflector nozzles fit on the main outlet, and 3 nozzles each attached to 2 outlets located below main outlet. Flow rate requirement can be adjusted through nozzles of both outlets located below main outlet.

▸ Equipped with efficient JACTO radial fan, they deliver air at high pressure and outstanding high speed with low power consumption, JACTO cannons produce fine droplets with extraordinary penetration into the dense foliage.

▸ Sprays up to 25m downwind with outstanding coverage.

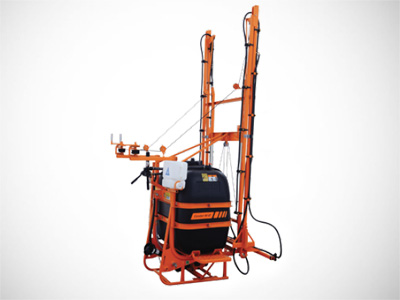

JACTO Condor 600 M-12
Tractor Mounted Boom Sprayer

Specification

Net Weight: 255 kg
Tank Capacity: 600 litres
Dimension: 1.35 m (L) x 1.55 m (W) x 3.35 m (H)
Minimum Tractor Horse Power: 60 HP
Pump Capacity: 75 L / min
Revolution: 540
Pressure: 28 bar
Boom Length: 11.5 metres
Boom Height: 0.5 – 1.8 metres
Spraying Swath: 12 metres
Nozzle: Ceramic Cone Nozzle
Quantity: 24
Agitation: Hydraulic Return
Average Tank Filling Time: 8 minutes

Features & Benefits:

▸ Suitable for pesticide application for oil palm blanket spray, nursery, vegetable farm and etc.

▸ Tank HDPE (High Density Polyethylene) with 600 lires capacity is resistant against corrosive chemicals and UV to prolong life span.

▸ Piston pump has three ceramic sleeves that ensure efficient applications and greater resistance to chemical abrasion.

▸ Pressure regulating valve provides great sensitiveness and precision in the calibrations without changing nozzle.

▸ Suction filter is located between chemical tank and pump which is specifically designed to prevent dirt and impurities from reaching the pump. It has an easily reached shut – off valve which obstructs the liquid flow for filter cleaning, filtering elements changing and/or pump maintenance.

▸ 24 cone nozzles fit on the boom can be spray up to 12 metres.

▸ The AGS single nozzle holder AGS is mounted with a stainless steel cone. It has a non-drip valve which shuts the flow off when the pressure drops to 10 psi, thus preventing it from dripping.

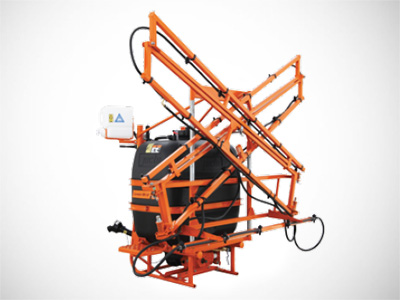

JACTO Condor 600 BX-12
Tractor Mounted Boom Sprayer

Specification

Net Weight: 255 kg
Tank Capacity: 600 litres
Dimension: 1.55 m (L) x 2.50 m (W) x 2.15 m (H)
Minimum Tractor Horse Power: 60 HP
Pump Capacity: 75 L / min
Revolution: 540
Pressure: 28 bar
Boom Length: 12 metres
Boom Height: 0.5 – 1.8 metres
Spraying Swath: 12 metres
Nozzle: Ceramic Cone Nozzle
Quantity: 24
Agitation: Hydraulic Return
Average Tank Filling Time: 8 minutes

Features & Benefits:

▸ Suitable for pesticide application for oil palm blanket spray, nursery, vegetable farm and etc.

▸ Tank HDPE (High Density Polyethylene) with 600 litres capacity is resistant against corrosive chemicals and UV to prolong life span.

▸ Piston pump has three ceramic sleeves that ensure efficient applications and greater resistance to chemical abrasion.

▸ Pressure regulating valve provides great sensitiveness and precision in the calibrations without changing nozzle.

▸ Suction filter is located between chemical tank and pump which is specifically designed to prevent dirt and impurities from reaching the pump. It has an easily reached shut – off valve which obstructs the liquid flow for filter cleaning, filtering elements changing and/or pump maintenance.

▸ 24 cone nozzles fit on the boom can be spray up to 12 metres.

▸ The AGS single nozzle holder is mounted with a stainless steel cone. It has a non-drip valve which shuts the flow off when the pressure drops to 10 psi, thus preventing it from dripping.

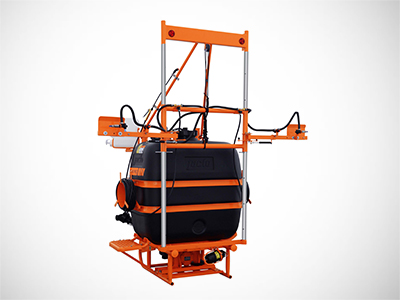

JACTO Condor BC 610 PEC
Tractor Mounted Boomless Sprayer

Specification

Net Weight: 200 kg
Tank Capacity: 600 litres
Dimension: 1.45 m (L) x 1.45 m (W) x 2.40 m (H)
Minimum Tractor Horse Power: 60 HP
Pump Capacity: 38 L / min
Revolution: 540
Pressure: 21 bar
Boom Length: 2.2 metres
Boom Height: 1.2 – 2.6 metres
Spraying Swath: 10 metres
Nozzle: Deflector Nozzle
XT Nozzle
Agitation: Hydraulic Return
Power Consumption: 25 HP
Average Tank Filling Time: 15 minutes

Features & Benefits:

▸ Suitable for herbicide applicatioon for blanket spray.

▸ Tank HDPE (High Density Polyethylene) with 400 litres capacity is resistant against corrosive chemicals and UV to prolong life span.

▸ Piston pump has three ceramic sleeves that ensure efficient applications and greater resistance to chemical abrasion.

▸ Pressure regulating valve provides great sensitiveness and precision in the calibrations without changing nozzle.

▸ Suction filter is manufactured with corrosion resistant material, equipped with a quick shut – off valve to facilitate cleaning operations.

▸ 2 deflector nozzles fit on the central boom and 2 XT nozzles fit on side boom. The boom can be spray up to 10 metres.

▸ Side boom is short which preventing the damage of the boom from hitting on the obstacles like lamp post, crop trunk and etc.

▸ Equipped with spraying hose with spraying lance when the path that tractor cannot be access.

▸ Daily productivity is around 17ha.

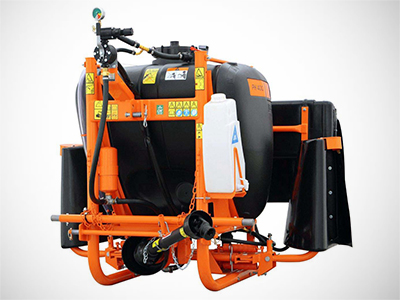

JACTO PH400SA
Tractor Mounted Hooded Boom Sprayer

Specification

Net Weight: 210 kg
Tank Capacity: 400 litres
Dimension: 1.50 m (L) x 1.68 m (W) x 1.43 m (H)
Minimum Tractor Horse Power: 50 HP
Pump Capacity: 38 L / min
Pump: Piston
Revolution: 540
Pressure: 21 bar
Boom Length: 2.90 – 3.80 metres
Nozzle: Deflector Nozzle
Fan Nozzle
Agitation: Hydraulic Return
Power Consumption: 25 HP
Average Tank Filling Time: 10 minutes

Features & Benefits:

▸ Suitable for herbicide application for canopy crop.

▸ Tank HDPE (High Density Polyethylene) with 400 litres capacity is resistant against corrosive chemicals and UV to prolong life span.

▸ Pressure regulating valve provides great sensitiveness and precision in the calibrations without changing nozzle.

▸ Suction filter is manufactured with corrosion resistant material, equipped with a quick shut-off valve to facilitate cleaning operations.

▸ 3 fan nozzles fitted on the central boom, and 2 deflector nozzles on side boom. The boom can be adjusted from 2.90 to 3.80 metres.

▸ Equipped with in-line filters for the boom to filter impurities and minimize the blockage of the boom.

▸ Side boom is equipped with the suspension which prevent the damage of the boom when the boom hit on the obstacles like lamp post, crop trunk and etc.

▸ Hooded boom is to prevent the spraying drift when apply herbicide so that the crop can be avoided from injury.
