Machinery & Applicators

NIMAMOTO AGE 320BC
Backpack Motorized Brush Cutters

Specification
Engine:	AE320
Fuel tank capacity:	1.0 litres
Type:	Air cooled. 2-cycle, 1 cylinder
Gear:	Spiral bevel gear
Reduction ratio:	1:1. 33
Safety Recover:	Standard accessory
Piston displacement:	31.8
Feul blending ratio:	25:1
Carburetor:	Diaphram type
Ignition system:	Electron
Ignition Plug:	NGK BPM6Y
Stardting system:	Recoil starter

Features & Benefits:

▸ Designed for mobility, reliability & comfort in your work & garden activities.

▸ Ergonomic & vibrational absorption system. Engine base is supported ergonomically for weight distribution on operator’s hip. Pads at the back reduces pressure on operators shoulder.

▸ Genuine NIMAMOTO power provide true commercial-grade engines featuring chrome impregnated cylinders, dual piston rings, & full chrome moly, bearingsupported crankshaft.

▸ Tough structural aluminium outer driveshaft tubes is strong and light weight.

▸ Easy recoil assist starter system, incredibly clean power & torque at a low weight.

▸ Low emission technology engines meets LARB & EPA standard.

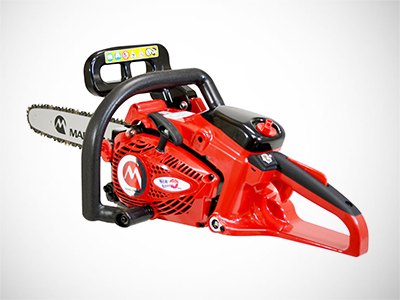

MARUYAMA MCV 3100S
Chainsaw

Specification
Engine:	Air Cool 2 Cycle Gasoline
Oil Tank:	0.18 litres
Dimension:	421 x 244 x 230 mm
Net Weight:	3.3 kg
Displacement:	30.1 cc
Fuel tank capacity:	0.24 litres
Fuel:	Gasoline
Max Output:	1.04 kw / 12000 rpm
Max Chain Speed:	22.9 m/s
Handle:	Rear
Bar Length:	16 inch
Saw Chain:	91 PX, 3/8

Features & Benefits:

▸ Real handle for more torque to cut log.

▸ Patented “E-Just” chain tensioning system uses a ratchet mechanism on the front handle for quick chain tightening.

▸ “PreVENT” system which intake only clean air system seperates dust & debris using certrifugal force that diverts dirty air away from the air filter.

▸ Automatic oil pump which oil is supplied only when clutch is engaged & the chain is moving.

▸ Anti vibration spring & rubber dampers ensures a smoother cut each & every time .

▸ Brake inertia activated chain.

▸ Walbro carburetor with primer bulb.

▸ Retractable boot system.

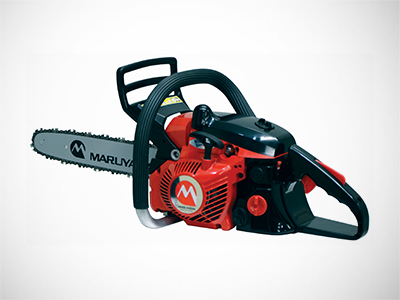

MARUYAMA MCV 3501S
Chainsaw

Specification
Engine:	Air Cool 2 Cycle Gasoline
Oil Tank:	0.3 litres
Dimension:	406 x 241 x 282 mm
Net Weight:	4.2 kg
Displacement:	34.9 cc
Fuel tank capacity:	0.34 litres
Fuel:	Gasoline
Max Output:	1.25 kw / 12000 rpm
Max Chain Speed:	22.9 m/s
Handle:	Rear
Bar Length:	16 inch
Saw Chain:	91 PX, 3/8

Features & Benefits:

▸ Technology proven 2-stroke engine.

▸ Reverse start 2 system incorperates the best features of an electric starter for fast & easy starts.

▸ “PreVENT” system which debris & saw dust are dispersed leaving only clean air running through.

▸ Brake inertia activated chain.

▸ Automatic lubrication system & adjustable.

▸ Connecting rods, forged steel.

▸ Transistorized electronic ignition system.

▸ Certrifugal clutch system for high performance.

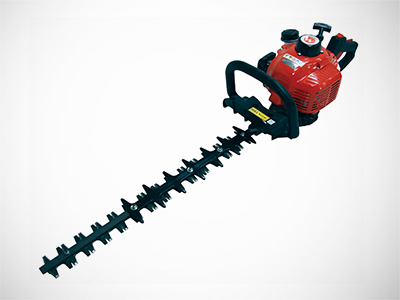

MARUYAMA HT 233D
Hedge Trimmer

Specification
Engine:	Air Cool 2 Cycle Gasoline
Dimension:	1080 x 248 x 226 mm
Net Weight:	5.4 kg
Displacement:	22.5 cc
Fuel tank capacity:	0.4 litres
Fuel:	2 T Gasoline
Maximum Output:	0.58 kw / 8000 rpm
Blade Type:	Double
Blade Length:	600 mm
Blade Thickness:	2.5 mm
Handle Type:	Rotational
Recoil Starting System:	Reverse Start 2

Features & Benefits:

▸ Rugged & reliable.

▸ Outstanding power & performance.

▸ Strong extreme duty gearbox which employs all ball & roller bearing construction for smooth power transmission & long service life.

▸ Connecting rods are thicker double oxide coated to better retard oxidation.

▸ Clutches manufactured from die-cast with bouded fibrous linings for significant by reduced heat build-up.

▸ Main gear has a larger circumference & greater material thickness for better power transfer to the blades.

▸ Handle can be positioned every 45⁰ degrees giving the operator excellent cutting flexibility.

▸ Induction hardened chrome steel blades are polish ground sharpened on all three cutting surfaces for a cleaner cut.

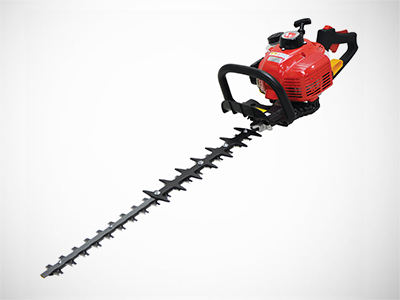

MARUYAMA HT 233DL
Hedge Trimmer

Specification
Engine:	Air Cool 2 Cycle Gasoline
Dimension:	1240 x 248 x 226 mm
Net Weight:	5.7 kg
Displacement:	22.5 cc
Fuel tank capacity:	0.4 litres
Fuel:	2 T Gasoline
Maximum Output:	0.58 kw / 8000 rpm
Blade Type:	Double
Blade Length:	750 mm
Blade Thickness:	2.5 mm
Handle Type:	Rotational
Recoil Starting System:	Reverse Start 2

Features & Benefits:

▸ Professional grade, 2 stroke engine with better acceleration.

▸ Lightweight gear cases, long-lasting blades & vibration-reducing engine monts.

▸ Clutches are longer for better power transfer to blades .

▸ When it comes to blade speed, the hedge trimmers are extremely fast which giving a cleaner cut each & everytime.

▸ Cutting blades & guide bars are thicker than other competitors.

▸ Powerful dual reciprocating blade action.

▸ Commerial-grade heavy-duty gear boxes..

▸ Anti vibrating system which using both spring & rubber dampers to reduce vibration & operator fatigue.

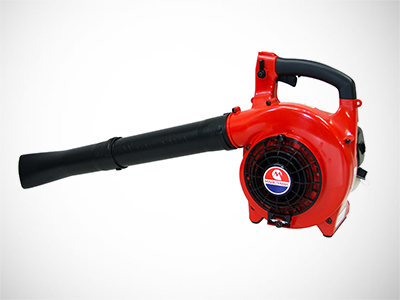

MARUYAMA BL 3110
Hand Held Blower

Specification
Engine:	Air-cooled, 2 cycle gasoline
Dimension:	320 x 255 x 370 mm
Net Weight:	4.3 kg (Without Pipe)
Displacement:	30.1 cc
Fuel tank capacity:	0.5 litres
Maximum Output:	0.97 kw / 7000 rpm (1.32 ps)
Maximum air speed:	82 m/s
Maximum Air Volume:	13 m³/min
Sound Level:	70 dB (A)
Starting System:	Recoil System

Features & Benefits:

▸ Powerful & reliable Kawasaki commercial engines.

▸ Extraordinary power to weight ratio.

▸ Fiberglass enhanced polypropylene fan housing add strength not weight.

▸ Open design promotes cooler operation.

▸ Comfortable, easy-to-use extra long frame mount throttle controls.

▸ Heavy-duty, high-flow air filters increase surface area for more effective operation.

▸ Each equipped with heavy-duty air cleaner & an anti-vibration device.

▸ Easy to operate and little effort to start the engine.

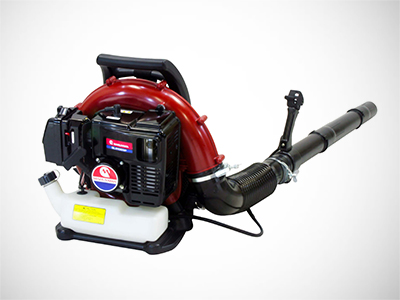

MARUYAMA BL8200SP
Backpack Blower

Specification
Engine:	Air Cool 2 Cycle Gasoline
Dimension:	365 x 485 x 475 mm
Net Weight:	9.4 kg
Displacement:	64.7 cc
Fuel tank capacity:	2.0 litres
Fuel:	2 T Mixed Gasoline
Maximum Output:	2.9 kw / 8000 rpm (4.0 PS)
Max Chain Speed:	90.7 m/s
Maximum Air Volume:	20.3 m³/min
Sound Level:	108 dB (A)
Starting System:	Recoil System

Features & Benefits:

▸ Kawasaki TK engine is designed with Kawasaki’s new air head scavenging method, which conforms to exhaust emission regulations.

▸ Backpack blower with superior balance of output, sound level & weight.

▸ Large diameter tubes maximize air volume.

▸ Innovative housing design maximize output & efficiency.

▸ Turbo fan makes for high air capacity with superior efficiency.

▸ Producing high air volume to pick up dry leaves & debris efficiently.

▸ High air speed ideal for blowing wet materials off the ground.

▸ Optional accessories: “Tornado tip” to increase air volume from normal tip (20.3 m³/min to 25.5 m³/min).
